P/A Transporters: Dimensions and Specifications



Transporters & Repair Kits can be purchased online at www.stampersstore.com


Click the images for larger diagrams:

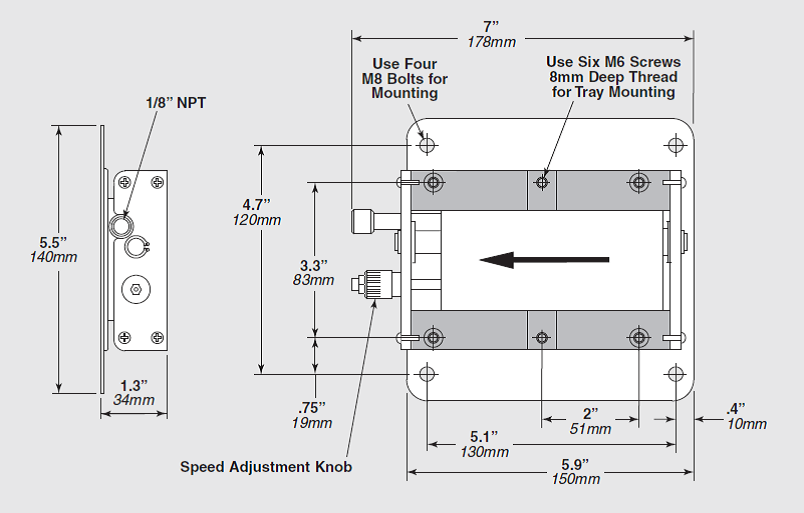

Model TP-3
Model TP-3

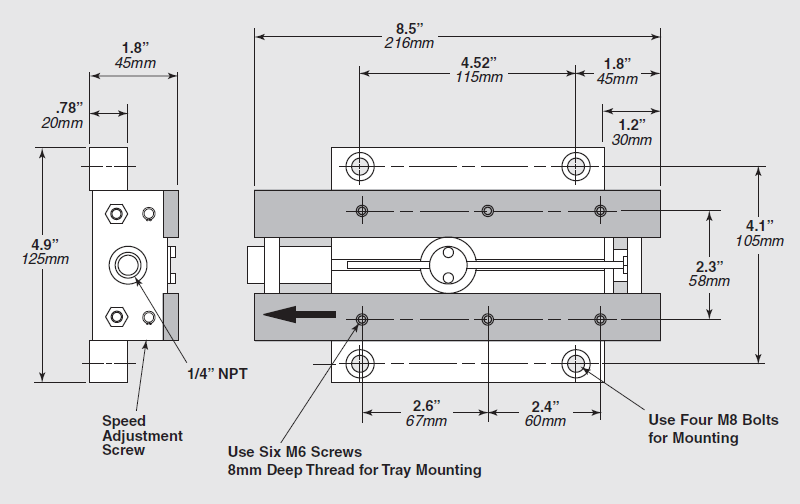

Model TP-10
Model TP-10

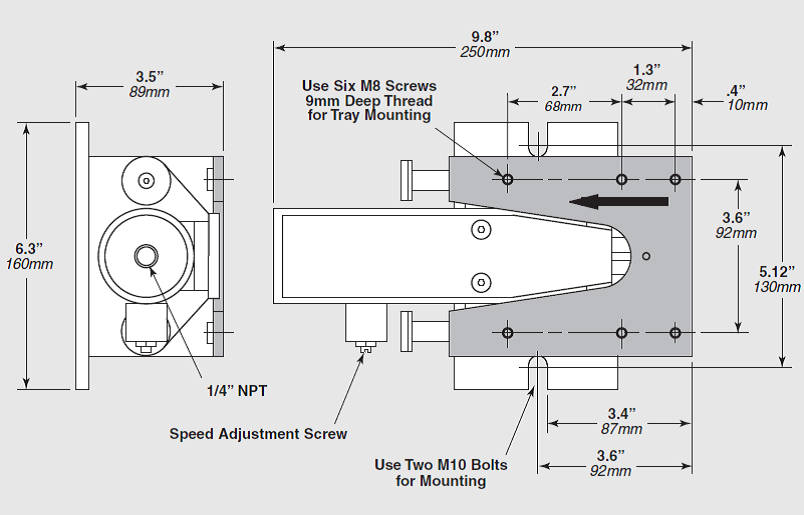

Model TP-40
Model TP-40

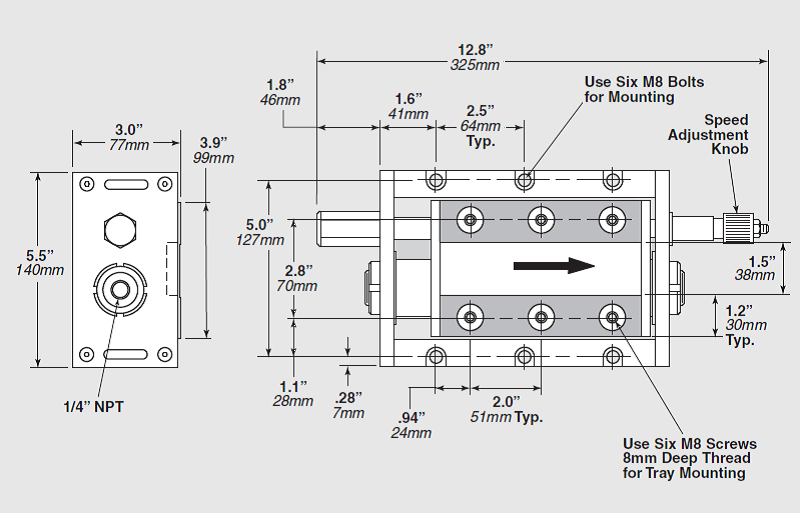

Model TP-70
Model TP-70

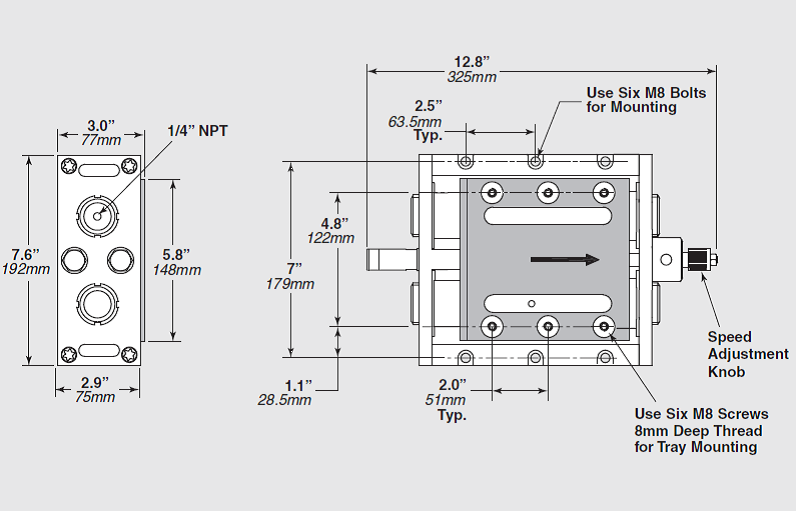

Model TP-140
Model TP-140


Specifications
.
U.S.A. STANDARD
Model Load Capacity
(Lbs.)
Air Consumption
(CFM)
Sound Level
(db-A)
Stroke Length
(In.)
Max. Tray Weight
(Lbs.)
Shipping Weight
(Lbs.)
TP-3 6 0.5 68 0.91 3 3.5
TP-10 20 0.7 68 0.98 6 7.0
TP-40 80 1.4 70 1.06 25 16.5
TP-70 140 1.4 70 0.98 50 12.5
TP-140 300 2.8 62 0.98 45 17.6
Note:   1. Recommended speed: 120 SPM     2. Feed Rate: 26-34 FPM    3. Air Pressure Range: 50-75 PSI     4. Max. Incline of Tray: 8"

METRIC
Model Load Capacity
(Kg)
Air Consumption
(L/Min.)
Sound Level
(db-A)
Stroke Length
(mm)
Max. Tray Weight
(Kg)
Shipping Weight
(Kg)
TP-3 3 14 68 23 1,5 1,4
TP-10 10 20 68 25 3 2,8
TP-40 40 42 70 27 15 7,2
TP-70 70 40 70 25 50 5,5
TP-140 140 42 62 27 100 8,0
Note:   1. Recommended speed: 120 SPM     2. Feed Rate: 8-10 m/min.    3. Air Pressure Range: 4-6 bar    4. Max. Incline of Tray: 8°


Transporters are manufactured by P/A Industries Inc. and distributed by Productivity Resources, Inc.
